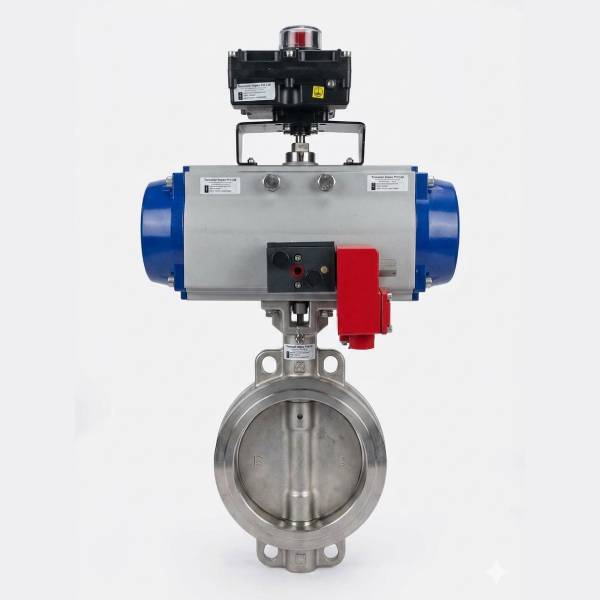

Rotex Double Offset Butterfly Valves are high-performance valves designed for reliable isolation and flow control in demanding industrial process applications.
The double offset design reduces contact and friction between the disc and seat during valve operation, helping minimize seat wear and provide dependable operation. The range covers sizes from 2" (DN50) to 24" (DN600) with wafer, lugged and flanged configurations.
A wide selection of body, disc and seat materials is available to suit different process media and operating conditions. The valves can be supplied with manual, pneumatic or electric operation together with gear operators, solenoid valves, limit switch boxes, positioners and air filter regulators as required.
| Valve Type | Double Offset / High Performance Butterfly Valve |
|---|---|
| Valve Size | 2" to 24" (DN50 to DN600) |
| Pressure Rating | PN10 / PN16 / PN25 / Class 150 / Class 300, as applicable |
| Design | Wafer / Lugged / Flanged |
| Body Material | Carbon Steel / Stainless Steel / Ductile Iron |
| Disc Material | Stainless Steel / Duplex / Alloy Steel |
| Seat Material | PTFE / RPTFE / Metal Seat / GFT |
| Stem Material | Stainless Steel |
| End Connection | Wafer / Lugged / Flanged |
| Flow Direction | Bi-Directional |
| Operating Medium | Gas / Air / Water / Steam / Process Fluids |
| Operating Temperature | As per seat material and application |
| Operation | Manual / Pneumatic / Electric |
|---|---|
| Actuator | Double Acting / Single Acting / Electric Actuator |
| Mounting Standard | ISO 5211 |
| Face-to-Face Standard | EN 558 / API 609, as applicable |
| Testing Standard | API 598 / EN 12266, as applicable |
| Seat Leakage Testing | API 598 / ISO 5208, as applicable |
| Accessories | Gear Operator / Pneumatic Actuator / Solenoid Valve / Limit Switch Box / Positioner / AFR |
We stock Rotex products for immediate despatch across AP & Telangana.
