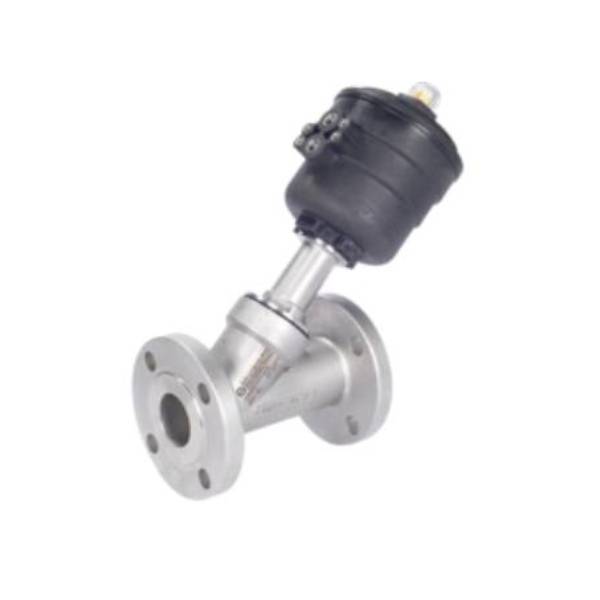

Rotex Angle Seated Valves are designed for reliable isolation and control of steam, air, water, oil, fuel gas, liquids and vacuum in demanding industrial process applications.
The range is available in normally closed (NC), normally open (NO) and bi-directional configurations with single acting or double acting operation. Valve sizes range from 1/2" to 3", with orifice sizes from 12 mm to 80 mm and operating pressures from vacuum up to 25 bar.
Stainless steel cast body construction is available with threaded, pipe welded, socket weld, Tri-Clamp and flanged connection options. Standard configurations are suitable for fluid temperatures from –10 °C to +180 °C with PTFE seat and NBR seal, while selected configurations are available up to +220 °C with PEEK seat and VITON seal.
| Function | Single Acting / Double Acting |
|---|---|
| Action | NC / NO / Bi-Directional |
| Size | 1/2" to 3" |
| Orifice Diameter | 12 mm to 80 mm |
| Operating Pressure | Vacuum to 25 bar |
| Port Connection | Threaded / Socket Weld / Pipe Weld / Tri-Clamp / ANSI Flange |
| Body Material | CF8 / SS304; CF3M / SS316L optional |
| Media | Steam / Air / Oil / Water / Fuel Gas / Liquid / Vacuum |
| Seat & Seal | PTFE Seat / NBR Seal; PEEK Seat / VITON Seal optional |
| Pilot Pressure | 0.8 to 10 bar |
| Pilot Fluid | Air |
| Coil Voltage | 12V / 24V / 72V / 110V / 230V AC/DC, others on request |
|---|---|
| Current Type | AC / DC |
| Temperature Range | –10 °C to +180 °C |
| High Temperature Option | Up to +220 °C with PEEK Seat / VITON Seal |
| Protection | IP67 standard; ATEX options available |
| Operator Material | Corrosion-resistant glass-filled Nylon |
| Operator Insert | SS303 insert for port and solenoid valve mounting |
| Certification | ISO 9001 / TÜV Germany / CE |

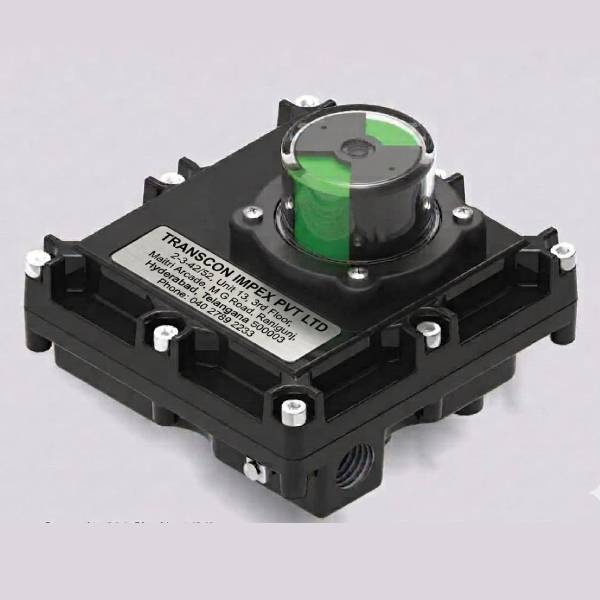

Limit Switch Boxes are designed to provide reliable valve position feedback for pneumatic actuators…
View Details

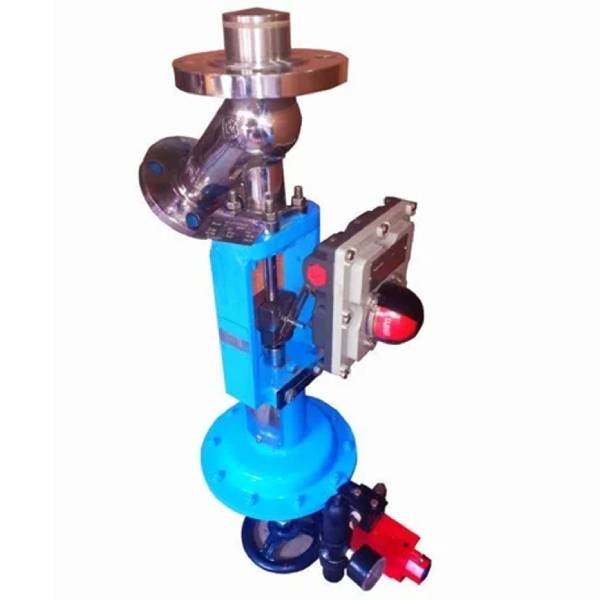

Flush Bottom Valves, also known as Tank Bottom Valves, are designed for efficient drainage,…
View Details

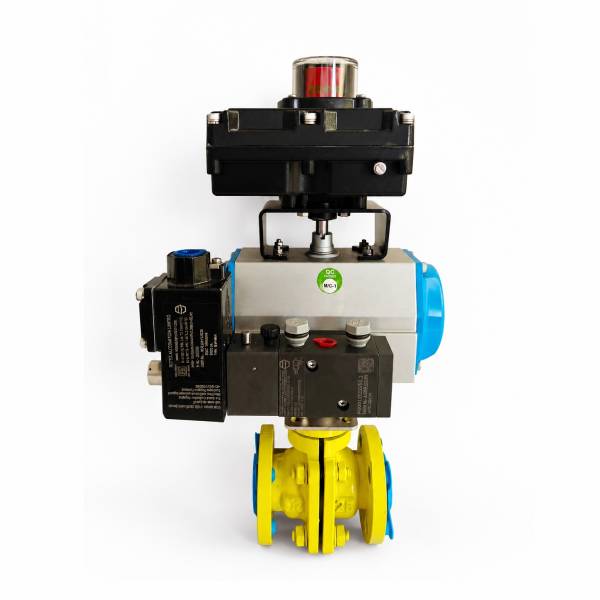

PFA Lined Ball Valves are engineered for reliable isolation and flow control of highly…
View Details

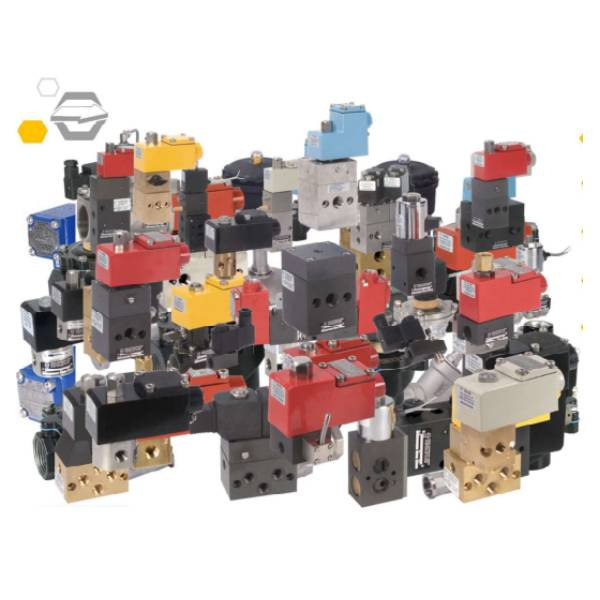

Rotex Solenoid Valves represent over 45 years of continuous development in electromechanical valve technology.…
